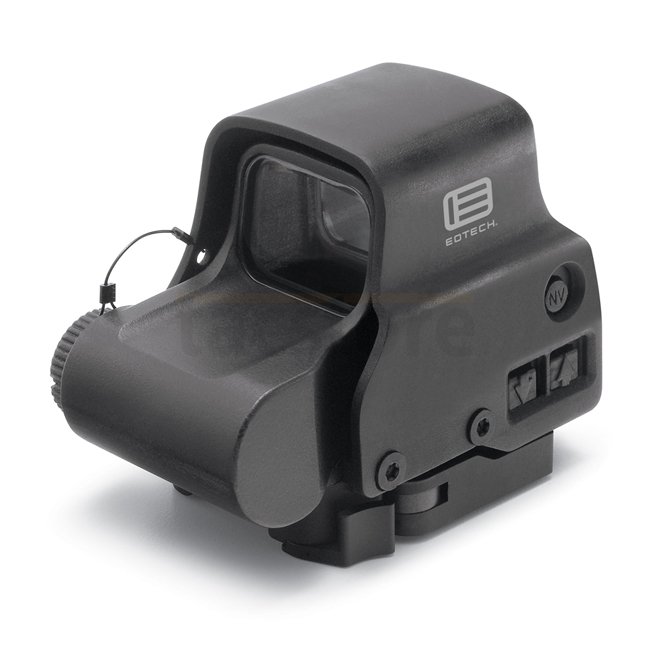

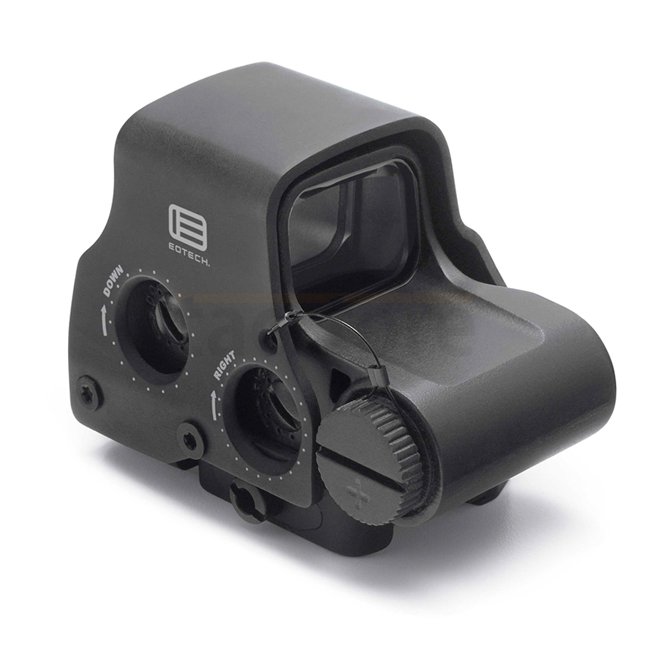

EoTech EXPS3-0 Holosight - Black

Operation

• Optics: Transmission holography - parallax free
• Magnification: 1x
• Eye Relief: Unlimited
• Length/Width/Height: 3.5"x2.4"x2.8" (91.4X 60.9x71mm)
• Weight: 11.2 oz (317grams)
• Temperature: -40 to 150 F
• Waterproof: Submersible to 33 ft depth
• Sealing: Fogproof internal optics
• Adjustment (per click): 0.5 MOA (1/2" at 100 yds)
• Adjustment Range: +/- 40 MOA travel
• Mount: 1" Weaver or (MIL-STD-1913) rail. Adjustable for width variation
• Return to Zero: Repeatable to within 2 MOA after re-mounting
• Night Vision Compatibility: 10 brightness setting (generation I-III+)

Heads-Up-Display Window

• Optical Surfaces: Anti-glare coating
• Window Dimensions: 1.20" x 0.85" (30 x 23mm)
• Front Window Material: 1/8" solid glass
• Rear Window Material: Shatter resistant laminate (3/16" thick)
• Field of View (100 yds): 30 yds (28m) at a 4" eye relief

Electrical

• Brightness Adjustment Range: 146,000:1 brightest to lowest
• Night Vision Brightness Range: 1280:1 with NV switch engaged
• Power Source: (1) 123 lithium battery
• Battery Life: 600 continuous hours at nominal setting 12
• Brightness Settings: 30 settings with scrolling feature (10 settings for NV use)
• Auto Battery Check Indicator: Flashing reticle upon start-up
• Auto Shut-down: At 8 hrs- programmable to 4 hrs
