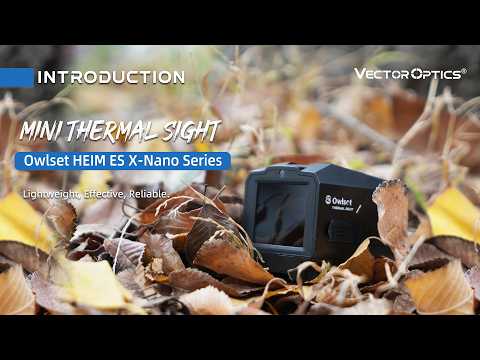

Vector Optics Owlset HEIM ES X-Nano STD Mini Thermal Sight

Compact thermal sight for pistols, AR-15 platforms and LPVO top mounting

The Vector Optics Owlset HEIM ES X-Nano STD Mini Thermal Sight combines a lightweight body with advanced thermal imaging for low-light applications. Weighing only 123 g and measuring 51 x 43 x 46 mm, it supports pistol platforms, AR-15 platforms and LPVO top-mount configurations.

Real-time hot spot tracking automatically detects and tracks the hottest targets during night search and engagement. The 256 x 192 thermal sensor with 12 μm pixel pitch, 50 Hz frame rate, 19 mm lens and 1.4 inch touchscreen display provides clear thermal imaging in demanding visibility conditions.

Thermal Imaging and Target Recognition

• Infrared resolution: 256 x 192 / 12 μm
• Frame rate: 50 Hz
• Basic magnification: 0.5x
• Digital zoom: 0.5x / 1x
• NETD: ≤40 mK
• Detection range: up to 600 m
• Recognition range: up to 150 m
• Angular field of view: 13.5° x 10.1°
• Focus range: 5 m to infinity
• Display screen: 1.4 inch touchscreen

Display, Reticle and Durability

• 6 pseudo-color modes: White Hot, Black Hot, Hot Iron, Rainbow, Iron Red, Cold Color
• 10 reticle options with 5 color modes
• Reticle colors: Black, White, Red, Green, Yellow
• Waterproof rating: IP66
• Shock resistance: 1000 G
• Wi-Fi and app support: no
• Battery type: 16280, 900 mAh
• Operating duration: 3.5 h
• Charging interface: USB Type-C, 5 V
• Operating temperature: -20 °C to 60 °C

Technical Specifications and Package Contents

• Dimensions: 51 x 43 x 46 mm
• Weight: 123 g
• Package contents: Mounting base, plastic wrench, Torx wrench, USB charging cable, dual-slot battery charger, 3 batteries
